Products / Accessories FT21-24 / 9503

9503

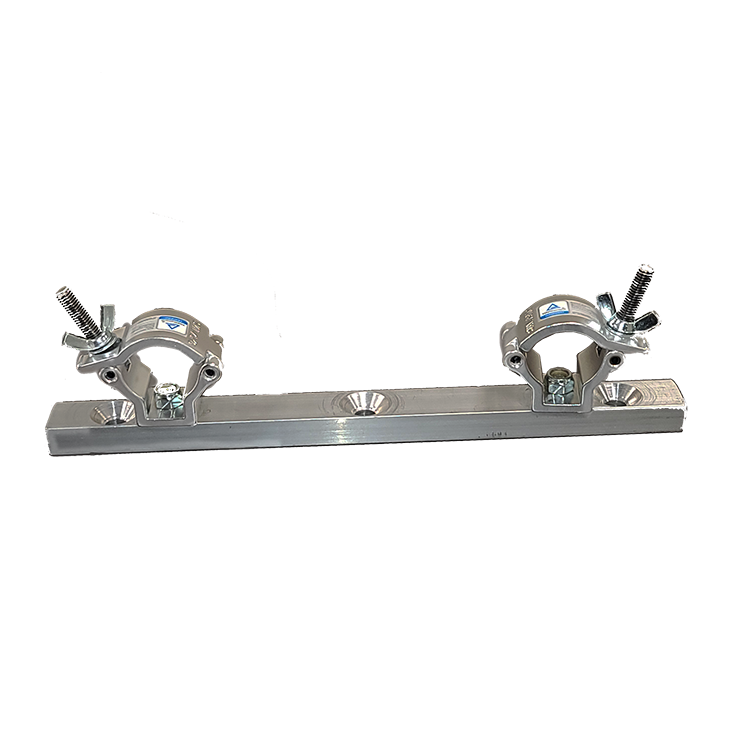

Screen deco truss mount is a solid aluminum bar with predrilled holes for attachment to different TV sizes. It comes equipped with two deco truss half couplers 8005 that ensure comfortable and strong connection of the mount to trusses - FT23 or FT24.



Key features and benefits:



  • Solid aluminum bar
  • Attachment of different TV screen sizes
  • Fits to FT23 and FT24 trusses
  • Includes 2 x half couplers (8005)
  • max. weight load: 150 kg (331 lbs)





CE

Contact us today for more information or to receive a price quote.

CONTACT US TODAY
