Products / Accessories FT31-TT74 / 3151

3151

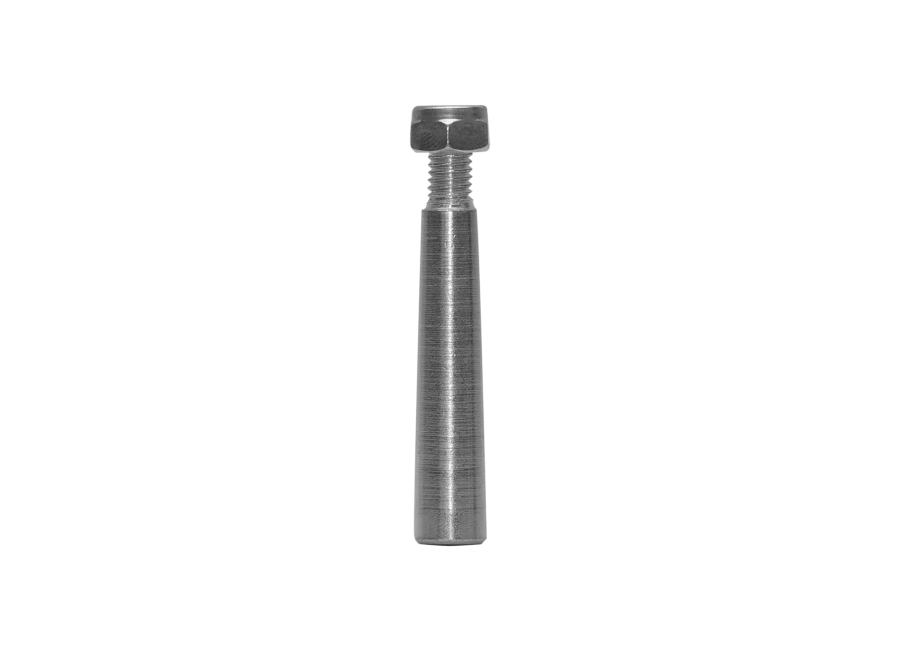

Steel conical safety pin with thread M8 creating a strong connection between aluminum connector and truss segment. Pin is conical in order to avoid any confusion in proper installation. It is secured in the connector by M8 nut. There is only one way to place it into the joint of trusses and connectors.



Key features and benefits:



  • Steel solid safety pin with thread M8
  • Used in trusses FT31, FT32, FT33, FT34, HT32, HT33, HT34, TT34, TC35, FT42, FT43, FT44, HT42, HT43, HT44, TT44, TC45
  • Secured in connector by M8 nut
CE

Contact us today for more information or to receive a price quote.

CONTACT US TODAY
