Products / Accessories FT31-TT74 / 3190

3190

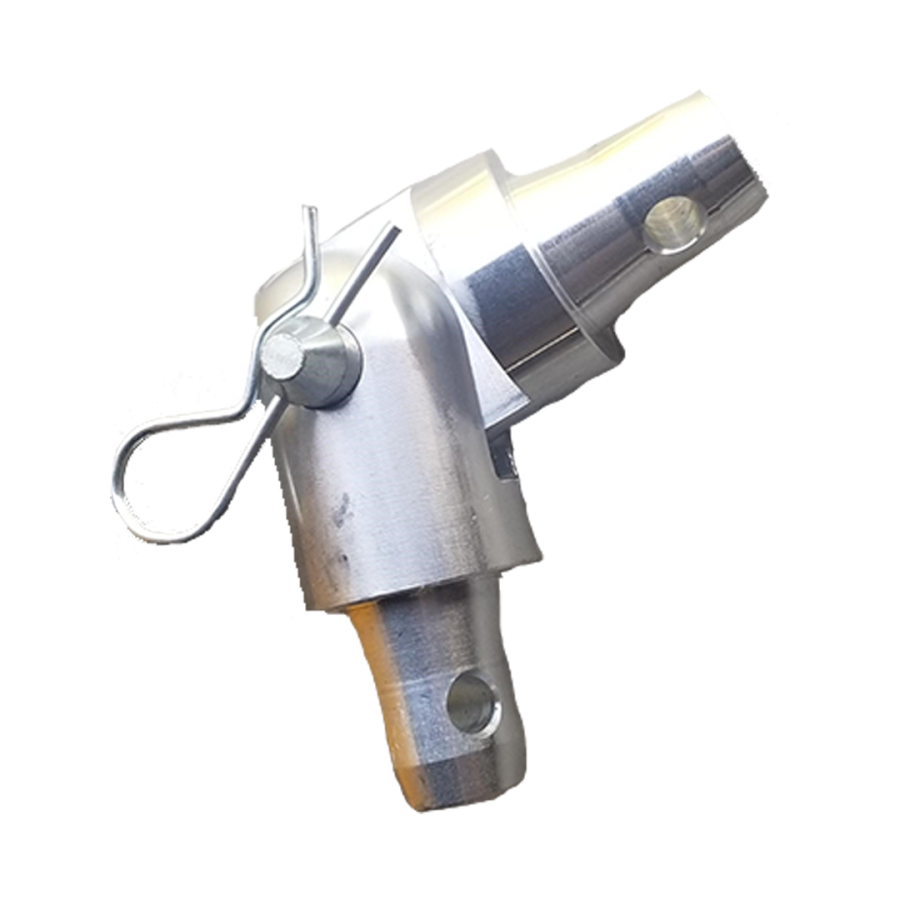

Hinge set comprises two aluminum fork parts (male and female) joined together by steel pin that is secured by a saftey clip. Each fork part is ended by conical half connector for easy connection to truss tubes through Quicklock connection. Its main feature lies in the variability of angles that can be created. It covers radius of 180º.



Key features and benefits:



  • Hinge set with radius 0º - 180º
  • Used in trusses FT31, FT32, FT33, FT34, HT32, HT33, HT34, TT34, TC35, FT42, FT43, FT44, HT42, HT43, HT44, TT44, TC45
  • Secured by safety pin (3150) and safety clip (3152)
CE

Contact us today for more information or to receive a price quote.

CONTACT US TODAY
