Standard Truss Roof System - 8 x 6 m (26 x 20 ft)

Products / Roofs / ROOF RST 8x6m

ROOF RST 8x6m

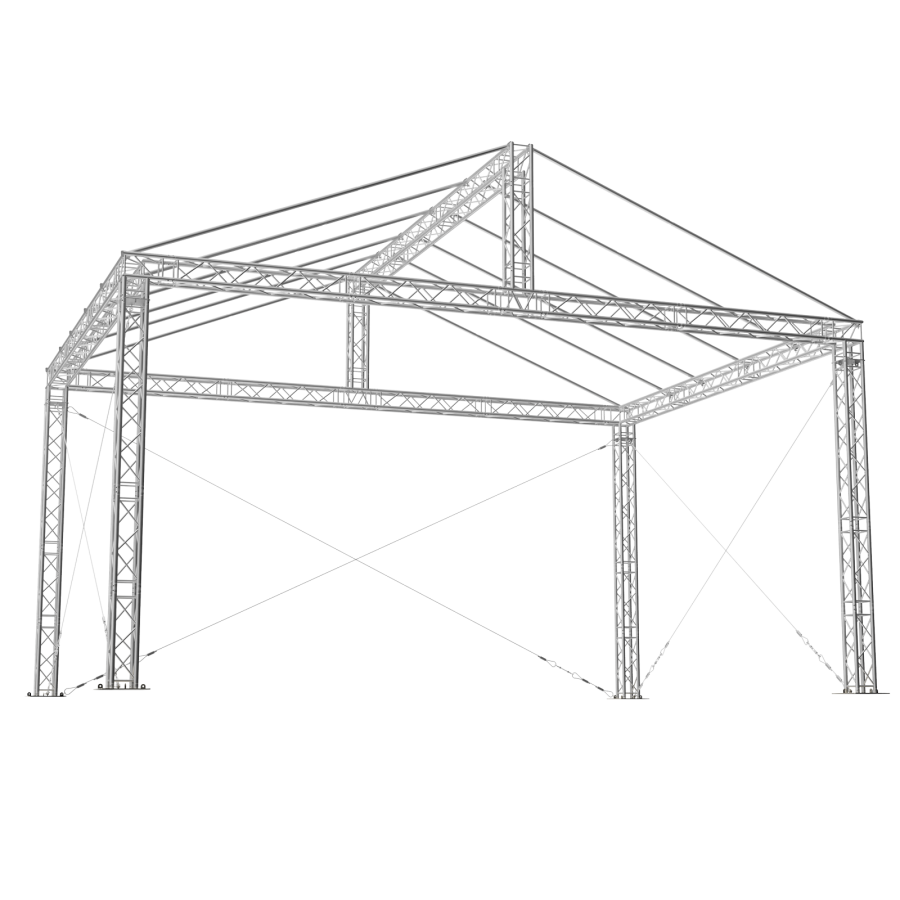

Using standard FT34 truss line to built safe and secure roof system is a big advantage for many smaller scale events. This roof can accommodate stage size of 8 x 6 m (26 x 20 ft). Its clearance is 4.2 m (13.78 ft). The gable roof can be installed both with the top cover from PVC only or including the standard side canopies as well.

The top canopy support system is created by six 50 x 2 mm single tubes per side of the roof perfectly spaced 1.27 m (4.17 ft) apart form each other. These are securely hooked to the main support grid of the roof by side slim clamps 8037.

The horizontal beams are able to carry 55 kg/m (37 lbs/ft), which makes the max. loading capacity of the roof 1903 kg (4,195 lbs). The operational wind limit for using the roof system with the side canopies on all three sides is 15 m/s (33 mph).

SPECIFICATIONS

MAX. DIMENSIONS	9 x 6.5 m (29.53 x 21.33 ft)
MAX. STAGE SIZE	8 x 6 m (26.25 x 19.69 ft)
MAX. CLEARANCE	4.22 m (13.85 ft)
MAX. HEIGHT	6.22 m (20.41 ft)
MAX. LOAD BEARING CAPACITY	1903 kg (4,195 lbs)
TOTAL WEIGHT OF CONSTRUCTION	652 kg (1,437 lbs)

TAF Truss Aluminium | ROOF RST 8x6m | Roofs

Roof dimensions

Stage size		8000 x 6000 mm	26.25 x 19.69 ft
Inside width	A	8420 mm	27.63 ft
Overall width	B	9000 mm	29.53 ft
Inside depth	C	5920 mm	19.42 ft
Overall depth	D	6500 mm	21.33 ft
Clearance	E	4220 mm	13.85 ft
Height	F	6220 mm	20.41 ft

Loading capacity

Max. Load Bearing Capacity		1903 kg	4195 lb
Front Horizontal Beam	UDL	55 kg/m	37 lb/ft
Rear Horizontal Beam	UDL	55 kg/m	37 lb/ft
Side Horizontal Beams	UDL	55 kg/m	37 lb/ft

Used Truss

FT34 truss line standard products are mainly used for assembly of RST roofs. It is a box truss with 290 x 290 mm (12 x 12 in) outside dimensions, main pipe Ø 50 x 2 mm (2 x 0.08 in), braces Ø 20 x 2 mm (0.8 x 0.08 in). The alloy used as material for the pipes is EN AW-6082 T6.

Wind Management

Wind resistence is calculated with 3 side mesh canopies applied to the structure (2 side canopies and one rear canopy). The three roof walls carrying canopies must be secured by guy wire cross bracing at all times with min. loading capacity 1000 kg (2,205 lbs).

In service max. windspeed - 15 m/s - 54 km/h - 33 mph

Out of service max. windspeed - 28 m/s - 101 km/h - 62 mph

Ballast

Option 1 - 800 kg / 1,764 lbs ballast underneath each tower base = total of 3200 kg / 7,055 lbs

Option 2 - 800 kg / 1,764 lbs ballasts in the 3.5 m (11.5 ft) range from each tower leg attached to the structure by guy wires following the layout in static calculation.

Canopy and Side Walls

Top canopy is available standardly in silver grey and black color. The material used is SIO-LINE B 8000 with weight of 630 g/m².

The side walls are covered by air permeable mesh canopies in black.

Transportation Data

Total weight: ca. 700 kg (1,543 lbs)

Transport volume: ca. 7 m³ / 247 cu ft (max. length 2.5 m / 8.2 ft)

All truss segments are packed in brown carton boxes for better handling and protection during transport.

TAF Truss Manual EN-CZ
TAF Assembly Manual RST 8x6
TAF Roof 8x6 Component Dimensional Layout
