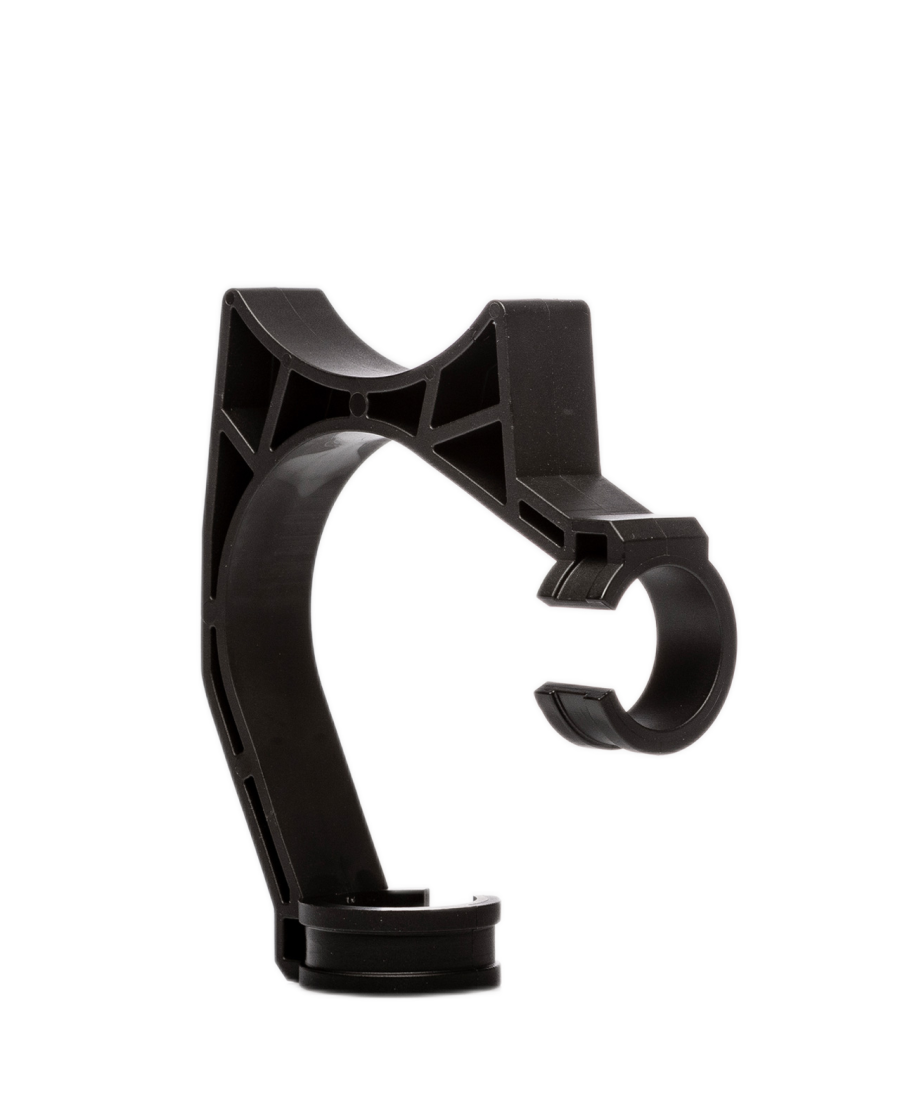

8107 - Snap Stack

Snap Stack clamp for faster and easier stacking of trusses in any length. Made from Polyamide PA6  and fitting 48-51 mm (1.9-2.0") main tubes with 20 mm (0.79") braces. It perfectly blocks the trusses from touching each other or the ground and thus it works as a great prevention of scratches and dents on the tubes.



It practically replaces standard plastic or wooden truss carriers and it saves approx. 2 cm in height per every layer of stacked truss tubes. In addition to that it can be fixed to the trusses permanently by just cable ties making the truss segments very fast and easy to stack after the show and the pile of the trusses very stable.



SPECIFICATIONS

Tube Diameter

48-51 mm (1.9-2.0

Braces

20 mm (0.79
