Products / Pre-Rig Truss / Pre-Rig Truss PR2

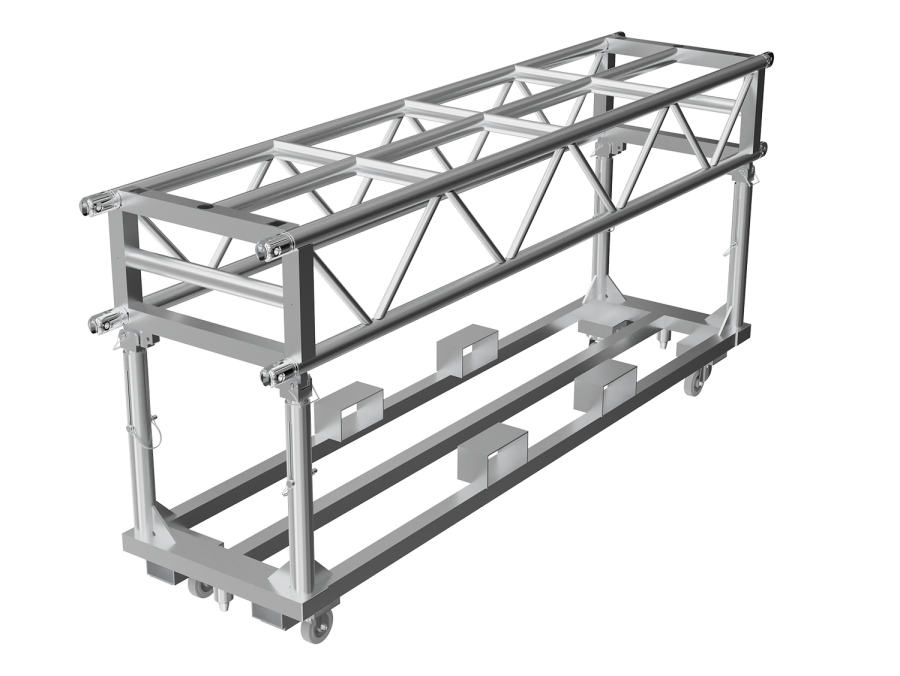

Pre-Rig Truss PR2

The PR2 stands for highly professional pre rig or touring trusses with male/female fork endings with thread for stable and strong connection. The profound threading enables to pull out each connector up to 65 mm from the main tube and is safely secured with fixing ring in desired position. It is possible to create angles of 0°- 12° and no corners or any other additional accessories needed. Touring trusses represent great solution for keeping show equipment ready for set up at all times. The PR2 dollies are strong wheeled pre rig truss supports for easy truss handling.


Key features and benefits:
  • Pre-Rig rectangular truss  605 mm x 349 mm (23.78 in x 13.74 in)
  • Certified 50 mm x 4 mm (2 in x 0.16 in) tube
  • Available in 1.22 m (4 ft) and 2.44 m (8 ft)
  • Interior & exterior applications
  • Connection kit supplied
  • Compatible with cell clamps 8001, 8002, 8004, 8007, 8011, 8015, 8016, 8017, 8018, 8020, 8021, 8023, 8031, 8032, 8033, 8034, 8035, 8036, 8037
  • Snap Clamps compatible (8102-8105)
  • Stack Clamps for easy stacking 8106, 8107
  • Powder coat color finish available on request





profound threading pre-rig truss RAF create angles 0°-14°

SPECIFICATIONS

MAIN TUBE

50 x 4 mm (1.97 x 0.16 in)

BRACES

25 x 3 mm (0.98 x 0.12 in)

ALLOY

EN AW-6082 T6
Fork Truss CEPowder coating available

Contact us today for more information or to receive a price quote.
