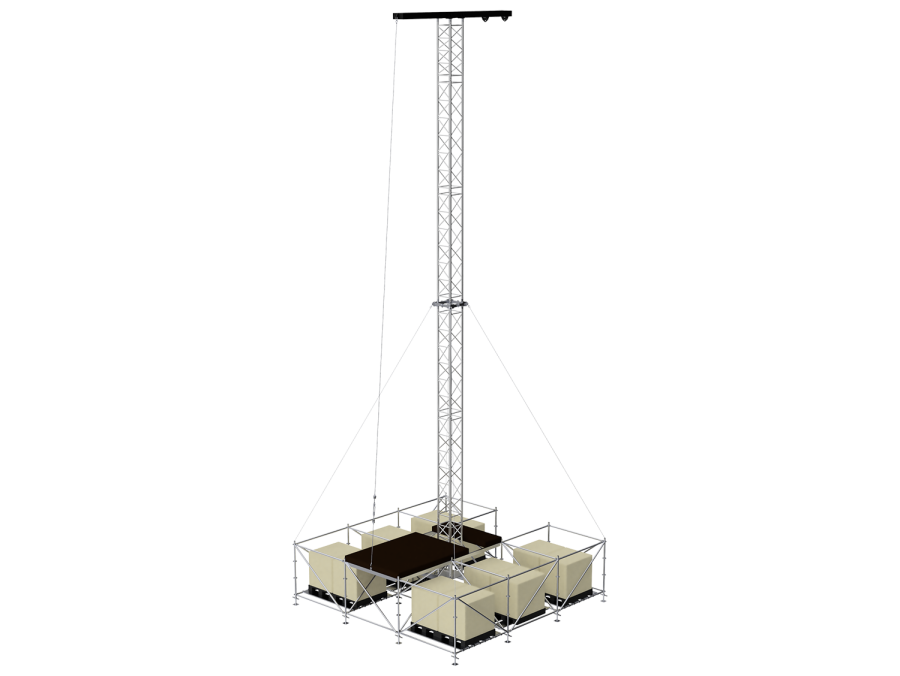

PAV2 - PA VERTICAL TOWER 2
PAV2 is a support structure designed for professional sound systems at concerts and outdoor events. Built from TT54M truss, the tower provides high strength and stability with a maximum height of 49.21 ft (15 m) and a load capacity of 4,850 lbs (2200 kg).
The structure is based on a Layher system foundation and features a top section with sliding hangers that allow positioning in 1.97 in (50 mm) adjustment steps. This enables precise alignment of sound systems with different rigging point spacing, trim heights and array curvatures.
PAV2 supports a maximum sound coverage area of 86.11 ft² (8 m²) (front) and 43.06 ft² (4 m²) (side) and is rated for wind speeds up to 45 mph (20 m/s) when properly ballasted with 13,230 lbs (6000 kg), making it suitable for demanding outdoor applications.
Key Features and Benefits
-
Maximum height of 49.21 ft (15 m) for optimal PA system elevation
-
High load capacity of 4,850 lbs (2200 kg) suitable for large line-array systems
-
Sliding top hangers with 1.97 in (50 mm) adjustment for precise system positioning
-
Stable Layher-based foundation for proven structural reliability
-
Designed for outdoor use with wind resistance up to 45 mph (20 m/s)
-
Supports sound coverage areas up to 86.11 ft² (8 m²) front and 43.06 ft² (4 m²) side
-
TT54M truss construction for professional heavy-duty applications
