LED FRAME 3

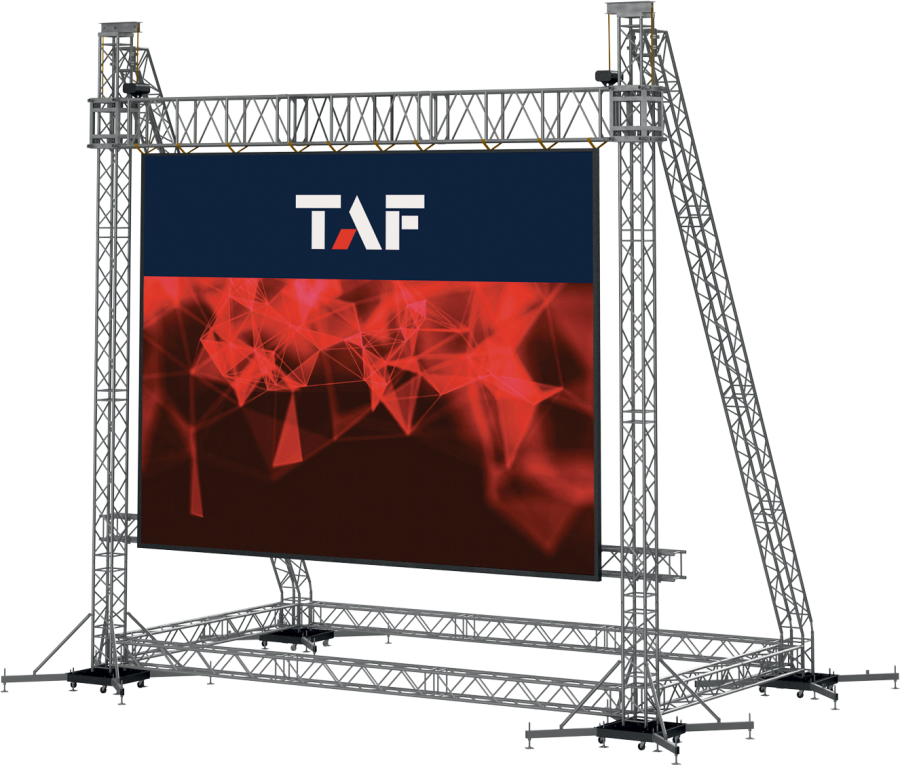

The largest standardized ground support for the LED screen in our portfolio can accommodate screen size up to 8 x 6 m (26.2 x 19.7 ft). The maximum area size of the screen is then 48m2, with this size of the screen a necessary safety truss beam was added to the structure at the bottom of the LED screen to which the screen itself must be attached. Maximum allowed weight of the LED screen is 3000 kg (6,614 lbs). The vertical truss legs are standard Tower 2 sets and FT44 trusses are used to create the base of the complete structure on the ground. There are several special parts that make it possible to assemble the complete structure as designed and calculated.
|
MAX. DIMENSION |
12.3 x 8.2 m (40.4 x 26.9 ft) |
|
MAX. LED SIZE |
8 m x 6 m (26.2 ft x 19,7 ft) |
|
MAX. HEIGHT |
10.2 m (33.5 ft) |
|
MAX. LOAD CAPACITY |
3000 kg (6,614 lbs) |
|
TOTAL WEIGHT OF CONSTRUCTION |
1200 kg (2,646 lbs) |
