LED FRAME 2

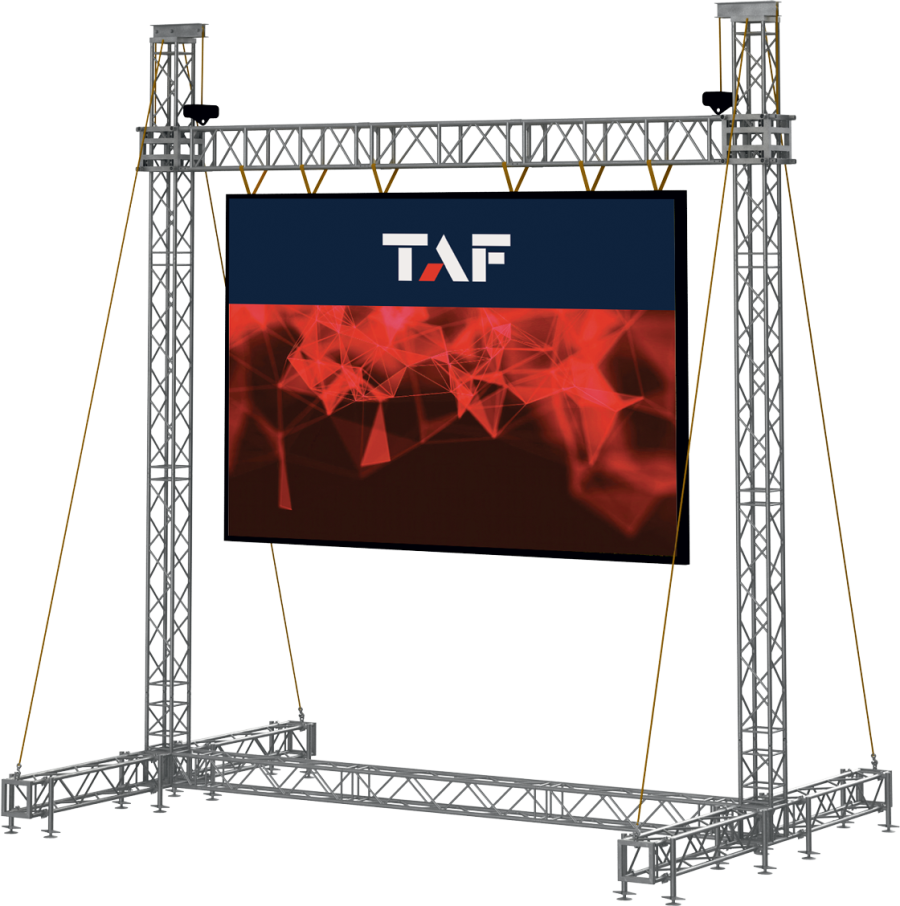

This type of LED screen truss frame is fit for LED screen sizes up to 6 x 4 m (19.7 x 13.1 ft). Thanks to the application of larger truss segments, the structure itself can carry screen with max. weight of 2000 kg (4,409 lbs). The maximum height level of the horizontal truss beam from TT54 is 9 m (29.5 ft), which means that the screen itself can be visible from great distance without any issues. The vertical towers are basically Tower 2 sets from our portfolio and the FT44 trusses are used to create the base of the complete structure on the ground.
|
MAX. DIMENSION |
8.25 x 5.72 m (27.1 x 18.8 ft) |
|
MAX. LED SIZE |
6 x 4 m (19.7 x 13.1 ft) |
|
MAX. HEIGHT |
9 m (29.5 ft) |
|
MAX. LOAD CAPACITY |
2000 kg (4,409 lbs) |
|
TOTAL WEIGHT OF CONSTRUCTION |
850 kg (1,874 lbs) |
