LED FRAME 1

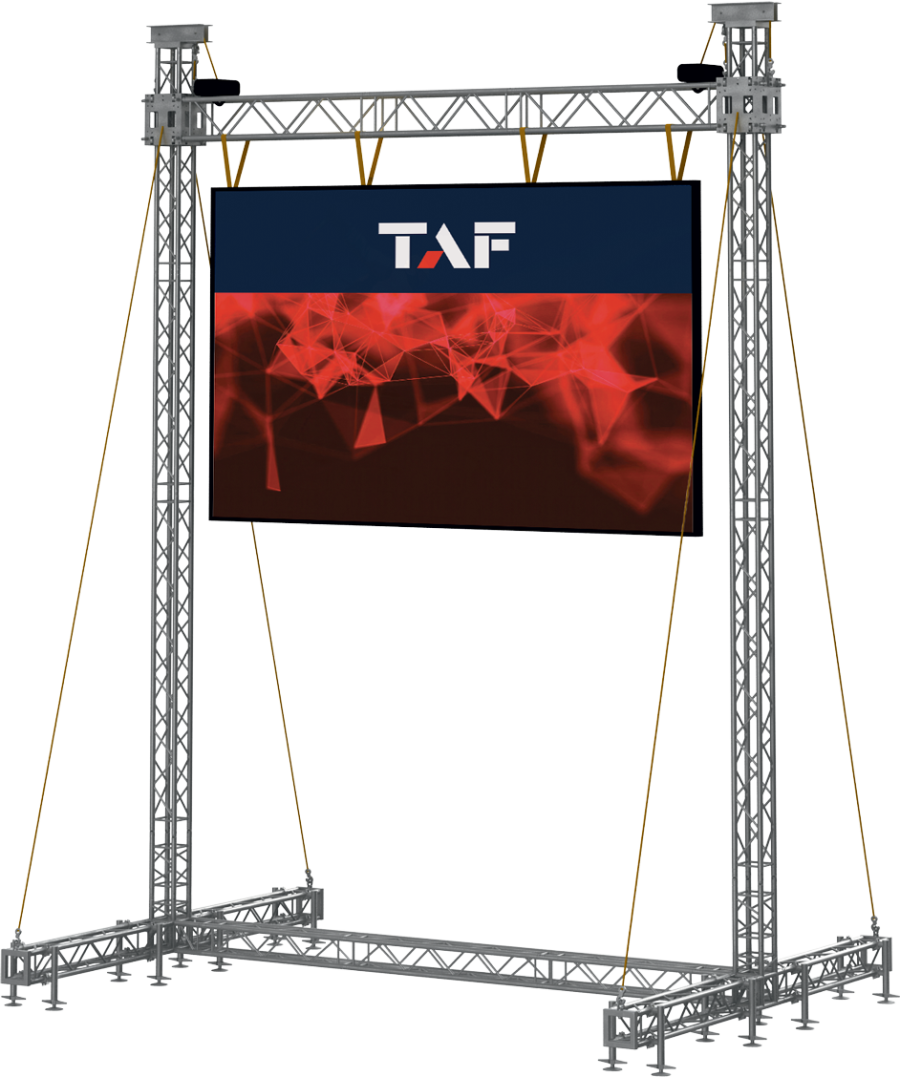

First type out of our three standard screen support structures is designed in order to cope with the load and wind forces that can occur while hanging 5 x 3 m (16.4 x 9.8 ft) LED screen. The maximum weight of the screen for this structure is 1200 kg (2,645 lbs). The LED screen ground support LED FRAME 1 is made of Tower 1 parts (TT34, top section, sleeve block etc.) for the vertical supports, FT44 truss in the horizontal top beam and FT34 trussing segments used to create the proper and stable base of the structure on the ground. The total weight of the structure itself is 650 kg (1,433 lbs).
|
MAX. DIMENSION |
6.35 x 4.62 m (20.8 x 15.2 ft) |
|
MAX. LED SIZE |
5 x 3 m (16.4 x 9.8 ft) |
|
MAX. HEIGHT |
8.49 m (27.9 ft) |
|
MAX. LOAD CAPACITY |
1200 kg (2,645 lbs) |
|
TOTAL WEIGHT OF CONSTRUCTION |
650 kg (1,433 lbs) |
